1 2

3

1 2

3 4

5

ABSORBICA-I

JAG RESCUE KIT

JAG RESCUE KIT

ASAP LOCK

PROGRESS

RING OPEN

CAPTIV

RIG

ASCENSION

FOOTCORD

CROLL

CAPTIV

RIG

In fo

rm at

io n

is n

on -e

xh au

st iv

e. R

ef er

to th

e ot

he r

pa ge

s as

w el

l a s

th e

In st

ru ct

io ns

fo r

U se

a nd

te ch

ni ca

l m an

ua ls

. T ec

hn ic

al tr

ai ni

ng is

e ss

en tia

l.

3. On the victim s rope, the rescuer installs a foot loop in counterbalance on the ASCENSION handled rope clamp.

4. In counterbalance on the foot loop, the rescuer prevents the rope from running through the CROLL and raises the victim. They remove the CROLL and take up as much rope slack as possible in the RIG descender.

5. The rescuer, hanging on the RIG, removes the ASCENSION. They install a braking carabiner and accompany the victim to the ground.

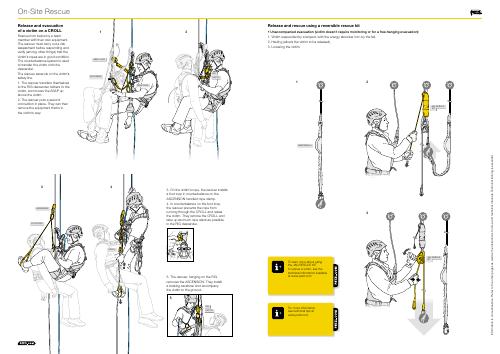

Release and evacuation of a victim on a CROLL Rescue from below by a team member with their own equipment. The rescuer must carry out a risk assessment before responding and verify (among other things) that the victim s ropes are in good condition. The counterbalance system is used to transfer the victim onto the descender.

The rescuer ascends on the victim s safety line.

1. The rescuer transfers themselves to the RIG descender, tethers to the victim, and moves the ASAP up above the victim.

2. The rescuer puts a second connection in place. They can then remove the equipment that is in the victim s way.

On-Site Rescue

Release and rescue using a reversible rescue kit Unaccompanied evacuation (victim doesn t require monitoring or for a free-hanging evacuation):

1. Victim suspended by a lanyard, with the energy absorber torn by the fall.

2. Hauling (allows the victim to be released).

3. Lowering the victim.

To learn more about using the JAG RESCUE KIT to rescue a victim, see the technical information available at www.petzl.com

For more information, see technical tips at www.petzl.com
