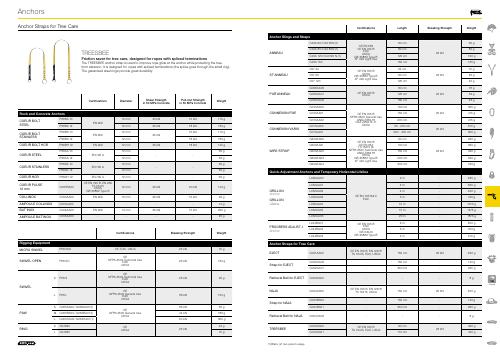

Petzl - 2024 professional catalog

ANNEAU

C40A 60 / C40 60N (1) CE EN 566

CE EN 795 B EAC

UKCA GB 30862 Type B XF 494 Light Use

60 cm

22 kN

60 g

C40A 80 / C40 80N (1) 80 cm 80 g

C40A 120 / C40120 N (1) 120 cm 100 g

C40A 150 150 cm 135 g

ST ANNEAU

C07 24 CE EN 795 B

UKCA GB 30862 Type B XF 494 Light Use

24 cm

22 kN

10 g

C07 60 60 cm 20 g

C07 120 120 cm 40 g

PUR ANNEAU

G006AA00

CE EN 795 B UKCA

60 cm

22 kN

18 g

G006AA01 120 cm 32 g

G006AA02 180 cm 48 g

CONNEXION FIXE

G010AA00

CE EN 795 B NFPA 2500 General Use

ANSI Z359.18 CSA Z259.15-17

UKCA

100 cm

25 kN

355 g

G010AA01 150 cm 415 g

G010AA02 200 cm 475 g

CONNEXION VARIO G011AA00 30 - 200 cm

25 kN 810 g

G011AA01 200 - 400 cm 950 g

WIRE STROP

G200AA00 CE EN 795 B CE EN 354 TS 16415 (2)

NFPA 2500 Technical Use ANSI Z359.18

UKCA GB 30862 Type B XF 494 Light Use

50 cm

23 kN

220 g

G200AA01 100 cm 320 g

G200AA02 150 cm 420 g

G200AA03 200 cm 520 g

G200AA04 300 cm 720 g

GRILLON

L052AA00

CE EN 795 B & C EAC

2 m - 480 g

L052AA01 3 m - 560 g

L052AA02 4 m - 640 g

L052AA03 5 m - 720 g

L052AA04 10 m - 1075 g

L052AA05 15 m - 1475 g

L052AA06 20 m - 1875 g

PROGRESS ADJUST-I L044BA01 CE EN 795 B

EAC UKCA

GB 24543 GB 30862 Type B

2 m - 300 g

L044BA02 3 m - 370 g

L044BA03 5 m - 510 g

EJECT G001AA00 CE EN 795 B, EN 12278 TS 16415, EAC, UKCA 150 cm 25 kN 490 g

G002AA00 - 150 cm - 140 g

G002AA01 - 250 cm - 225 g

G003AA00 - - - 8 g

NAJA G004AA00 CE EN 795 B, EN 12278 TS 16415, UKCA 150 cm 25 kN 400 g

G004BA00 - 150 cm - 140 g

G004BA01 - 250 cm - 230 g

G004CA00 - - - 8 g

TREESBEE G040AA00

CE EN 795 B TS 16415, EAC, UKCA

90 cm 23 kN

420 g

G040AA01 110 cm 440 g

MICRO SWIVEL P58 XSO CE, EAC, UKCA 23 kN 75 g

SWIVEL OPEN P58 SO CE

NFPA 2500 Technical Use EAC

UKCA 23 kN 130 g

SWIVEL

S P58 S CE

NFPA 2500 Technical Use EAC

UKCA 23 kN 95 g

L P58 L CE

NFPA 2500 General Use EAC

UKCA 36 kN 150 g

PAW

S G063AA00 / G063AA01 (1) CE

NFPA 2500 General Use UKCA

36 kN 60 g

M G063BA00 / G063BA01 (1) 45 kN 180 g

L G063CA00 / G063CA01 (1) 50 kN 350 g

RING S C04620

CE UKCA 23 kN

40 g

L C04630 70 g

COEUR BOLT STEEL

P36BA 10 EN 959

10 mm 23 kN 15 kN 110 g

P36BA 12 12 mm 25 kN 18 kN 135 g

COEUR BOLT STAINLESS

P36BS 10 EN 959

10 mm 25 kN

15 kN 110 g

P36BS 12 12 mm 18 kN 135 g

COEUR BOLT HCR P36BH 12 EN 959 12 mm 25 kN 18 kN 145 g

COEUR STEEL P36AA 10

EN 795 A 10 mm

- - 65 g

P36AA 12 12 mm 60 g

COEUR STAINLESS P36AS 10

EN 795 A 10 mm

- - 65 g

P36AS 12 12 mm 60 g

COEUR HCR P36AH 12 EN 795 A 12 mm - - 60 g

COEUR PULSE 12 mm G037BA00

CE EN 795 B, EN 959 TS 16415

UKCA GB 30862 Type B

12 mm 25 kN 20 kN 140 g

COLLINOX G100AA00 EN 959 10 mm 25 kN 15 kN 95 g

AMPOULE COLLINOX G101AA00 - - - - 14 g

BAT INOX G102AA00 EN 959 14 mm 25 kN 15 kN 250 g

AMPOULE BAT INOX G103AA00 - - - - 20 g

(1) Black, (2) two-person usage

Lifeline

Anchor

Anchor Straps for Tree Care

TREESBEE Friction saver for tree care, designed for ropes with spliced terminations The TREESBEE anchor strap is used to improve rope glide at the anchor while protecting the tree from abrasion. It is designed for ropes with spliced terminations (the splice goes through the small ring). The galvanized steel rings provide great durability.

Anchors

Certifications Diameter Shear Strength in 50 MPa Concrete Pull-Out Strength

in 50 MPa Concrete Weight

Rock and Concrete Anchors

Certifications Breaking Strength Weight

Rigging Equipment

Certifications Length Breaking Strength Weight

Anchor Slings and Straps

Quick-Adjustment Anchors and Temporary Horizontal Lifeline

Anchor Straps for Tree Care

Strap for EJECT

Retrieval Ball for EJECT

Strap for NAJA

Retrieval Ball for NAJA
