I’D EVAC

PAW PAW

I’D EVAC

JAG SYSTEM

BASIC

LIFT

ROLLER COASTER

TWIN RELEASE

SPIN L2

SPIN L2

TWIN RELEASE

PROGRESS

ADJUST

I’D / RIG

PODIUM

CROLL

JANE

RIG

PODIUM

PODIUM

LITEPOD

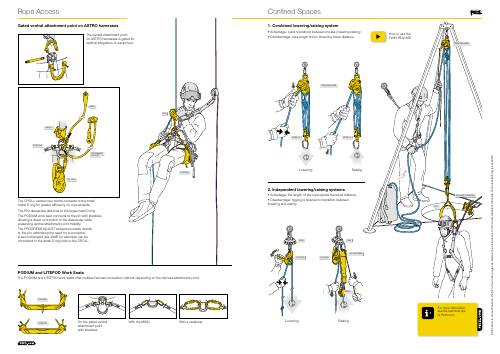

Gated ventral attachment point on ASTRO harnesses

On the gated ventral

attachment point

with shackles.

With the MINO.With a carabiner.

PODIUM and LITEPOD Work Seats

The PODIUM and LITEPOD work seats offer multiple harness connection options depending on the harness attachment point.

The CROLL ventral rope clamp connects to the small

metal D ring for greater efficiency on rope ascents.

The RIG descender attaches to the large metal D ring.

The PODIUM work seat connects to the pin with shackles,

allowing a direct connection to the descender while

preserving ventral attachment point mobility.

The PROGRESS ADJUST lanyard connects directly

to the pin, eliminating the need for a connector.

A second lanyard (the JANE for example) can be

connected to the small D ring next to the CROLL.

The ventral attachment point

on ASTRO harnesses is gated for

optimal integration of equipment.

I n f o r m a t i o n i s n o n-e x h a u s t i v e. R e f e r t o t h e o t h e r p a g e s a s w e l l a s t h e I n s t r u c t i o n s f o r U s e a n d t e c h n i c a l m a n u a l s. T e c h n i c a l t r a i n i n g i s e s s e n t i a l.

Rope Access

Lowering

Lowering Raising

Raising

2. Independent lowering/raising systems

• Advantage: the length of the rope equals the travel distance

• Disadvantage: rigging is required to transition between

lowering and raising

1. Combined lowering/raising system

• Advantage: quick transitions between modes (lowering/raising)

• Disadvantage: rope length is four times the travel distance

Conf ined Spaces

How to use the

TWIN RELEASE

For more information:

see the technical tips

at Petzl.com
