Petzl - 2025 professional catalog

I P 6 7

00-

01 0.14 J 140 g - 10 cm

02 0.20 J 200 g - 10 cm

03 0.35 J 200 g - 17.5 cm

04 0.50 J 200 g - 25 cm

05 0.70 J 200 g - 35 cm

06 1 J 200 g - 10 cm

07 2 J 500 g - 20 cm

08 5 J 1700 g - 27.5 cm

09 10 J 5 kg - 20 cm

10 20 J 5 kg - 40 cm

No protection

Protection against liquids

X = Not measured

0 = Not protected

1 = Protected against vertically falling water drops

2 = Protected against water drops (15° from vertical)

3 = Protected against rain (60° from vertical)

4 = Protected against splashing water

5 = Protected against water jets

6 = Protected against powerful water jets

7 = Temporary immersion (-1 meter for 30 minutes)

8 = Prolonged immersion

(deeper than 1 meter for period defined by manufacturer)

9 = Prolonged immersion (deeper than 1 meter)

and protection against pressure-washing

Protection against solid objects

X = Not measured

0 = Not protected

1 = Protected against projection of solid objects 50 mm

or greater in diameter

2 = Protected against projection of solid objects 12.5 mm

or greater in diameter

3 = Protected against projection of solid objects 2.5 mm

or greater in diameter

4 = Protected against projection of solid objects 1 mm

or greater in diameter

5 = Protected against dust

(limited ingress, no harmful deposits)

6 = Completely protected against dust

Choosing a Petzl headlamp means selecting a work tool designed to withstand the most severe conditions of use

while providing maximum reliability:

Each model must pass particularly stringent tests:

- For shock resistance, fall resistance, and crushing (including at low temperatures)

- For functional reliability (mechanical endurance)

- Individual inspection and test at the end of the assembly line (final quality check)

- For water resistance

Testing from design to manufacturing

IK Rating Impact Energy Impact Equivalent

In joules Equivalent to impact of XX g

dropped from XX cm

Protection Against External Mechanical Impacts: IK Protection Index

The IK rating, as defined by the IEC 62262 standard, indicates the degree of protection against external mechanical impacts.

In other words, the impact resistance of a product. The rating is composed of two numbers, each corresponding to a level of protection.

The IP Protection Index

Rating

Protection

Level of protection against solid objects

Level of protection against liquids

A headlamp’s resistance to solids and/or liquids is indicated by its IP rating.

This index classifies the level of protection offered by equipment against intrusions by solids

(e.g. dust) and liquids (e.g. water, oil) according to the IEC 60529 standard.

Understanding the protection index

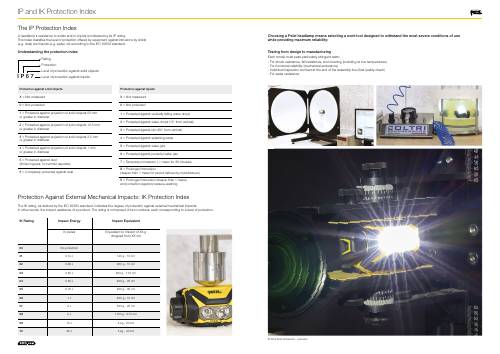

IP and IK Protection Index
