I’D EVAC

I’D EVAC

PITAGOR

PITAGOR

CONNEXION FIXE

CONNEXION

FIXE

MGO OPEN

MGO OPEN

ROLLCAB

GRILLON

GRILLON

SWIVEL OPEN

ABSORBICA-Y MGO

I’D EVAC

I n f o r m a t i o n i s n o n-e x h a u s t i v e. R e f e r t o t h e o t h e r p a g e s a s w e l l a s t h e I n s t r u c t i o n s f o r U s e a n d t e c h n i c a l m a n u a l s. T e c h n i c a l t r a i n i n g i s e s s e n t i a l.

Products included in the rescue kit:

- PITAGOR

- I’D EVAC

- CONNEXION FIXE

- ROLLCAB

- SWIVEL OPEN

- PAW S

- JANE

- GRILLON

- MGO OPEN

- GO x 4

- Am’D x 4

- CAPTIV x 3

- AXIS 11 mm with sewn termination

1. Rescuer accessing the chair

Backup belay may be done from the tower. This allows for a mutual

verification of the system before the rescuer moves onto the cable.

The rescuer is suspended on the ROLLCAB, and the GRILLON

lanyard is slightly slack to allow descent along the cable.

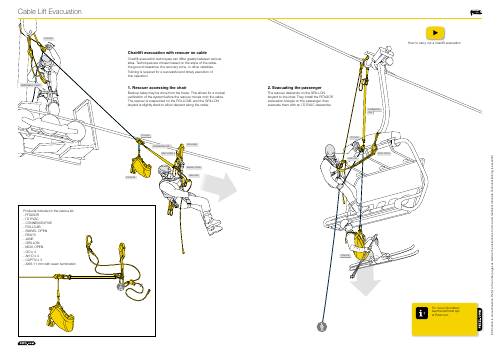

Chairlift evacuation with rescuer on cable

Chairlift evacuation techniques can differ greatly between various

sites. Techniques are chosen based on the slope of the cable,

the ground clearance, the recovery zone, or other variables.

Training is required for a successful and timely execution of

this operation.

Cable Lift Evacuation

2. Evacuating the passenger

The rescuer descends on the GRILLON

lanyard to the chair. They install the PITAGOR

evacuation triangle on the passenger, then

evacuate them with an I’D EVAC descender.

How to carry out a chairlift evacuation

For more information:

see the technical tips

at Petzl.com
